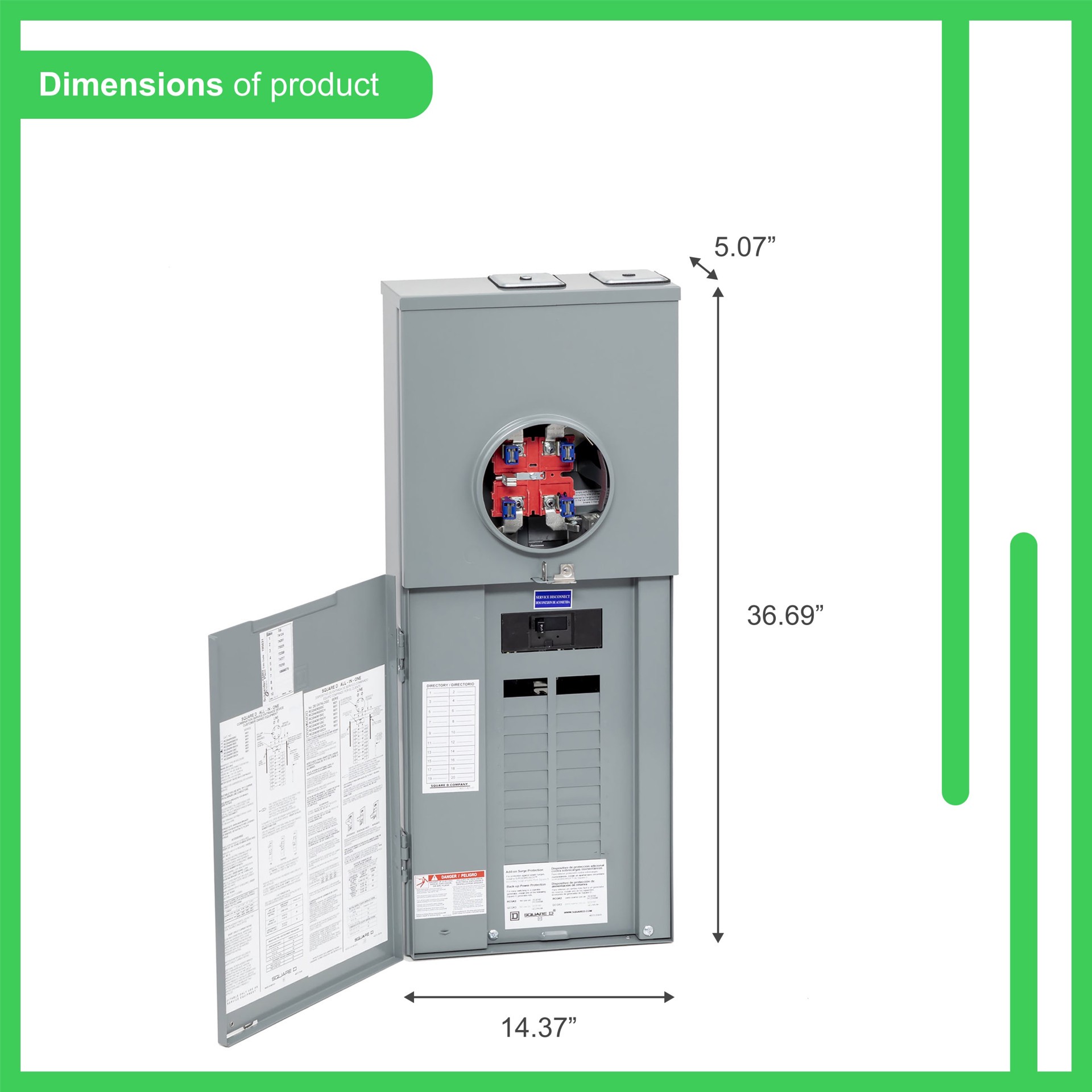

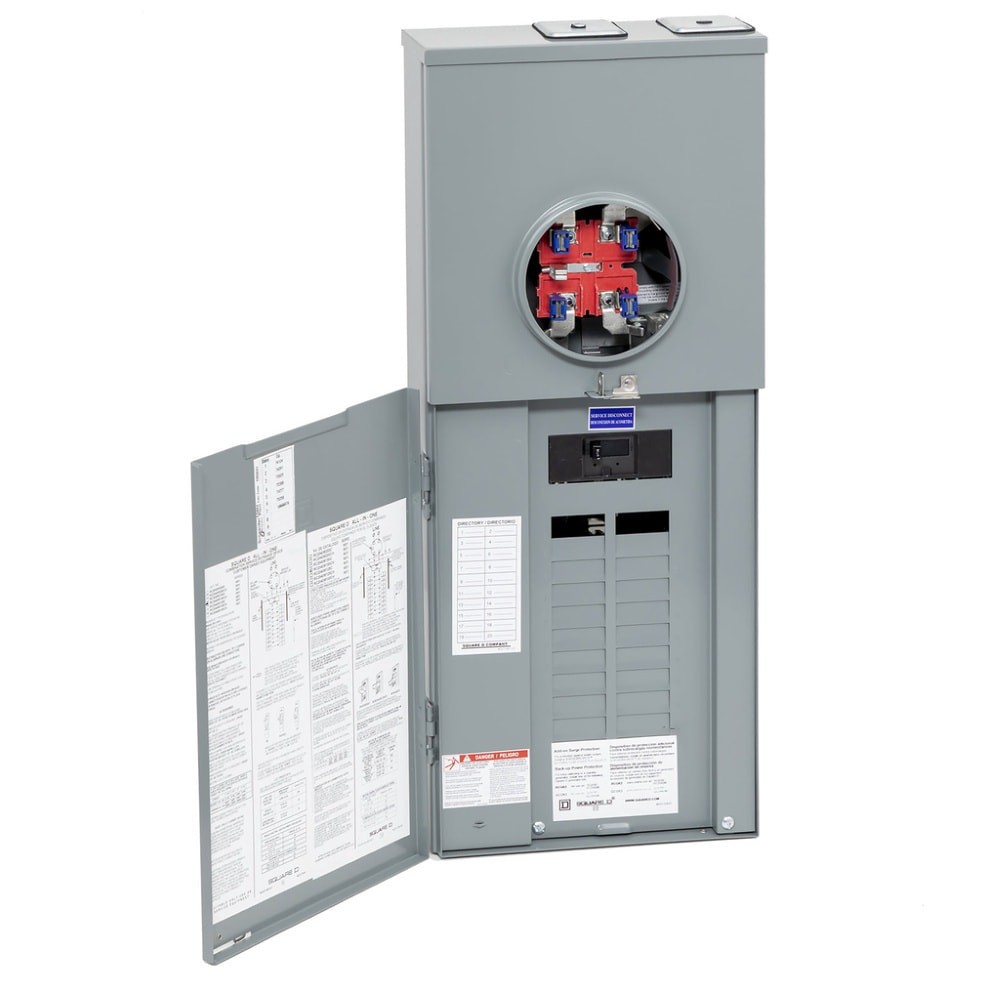

Name: Square D Homeline Ringless Overhead/Underground 150 -Amp 20 -Spaces 40 -Circuit Outdoor Main Breaker Meter Combo Load Center
Brand: Square D
Price: 387.39 USD
Availability: InStock

The Square D 150 Amp 20-Space 40-Circuit Combination Meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED) and is intended for use as a combination meter socket and main breaker load center. It is suitable for overhead or underground service applications. Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation. This CSED is built with a plated, aluminum bus bar that is tested and listed only for HomeLine circuit breakers rated 120/240VAC. 4-Jaw meter socket. NEMA type 3R enclosure. Bypass Type-horn. Designed with straight-In mains to save expensive cable and time. Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring.

Square D Homeline Ringless Overhead/Underground 150 -Amp 20 -Spaces 40 -Circuit Outdoor Main Breaker Meter Combo Load Center

Get same-day delivery from stores you know and love.

Product details
