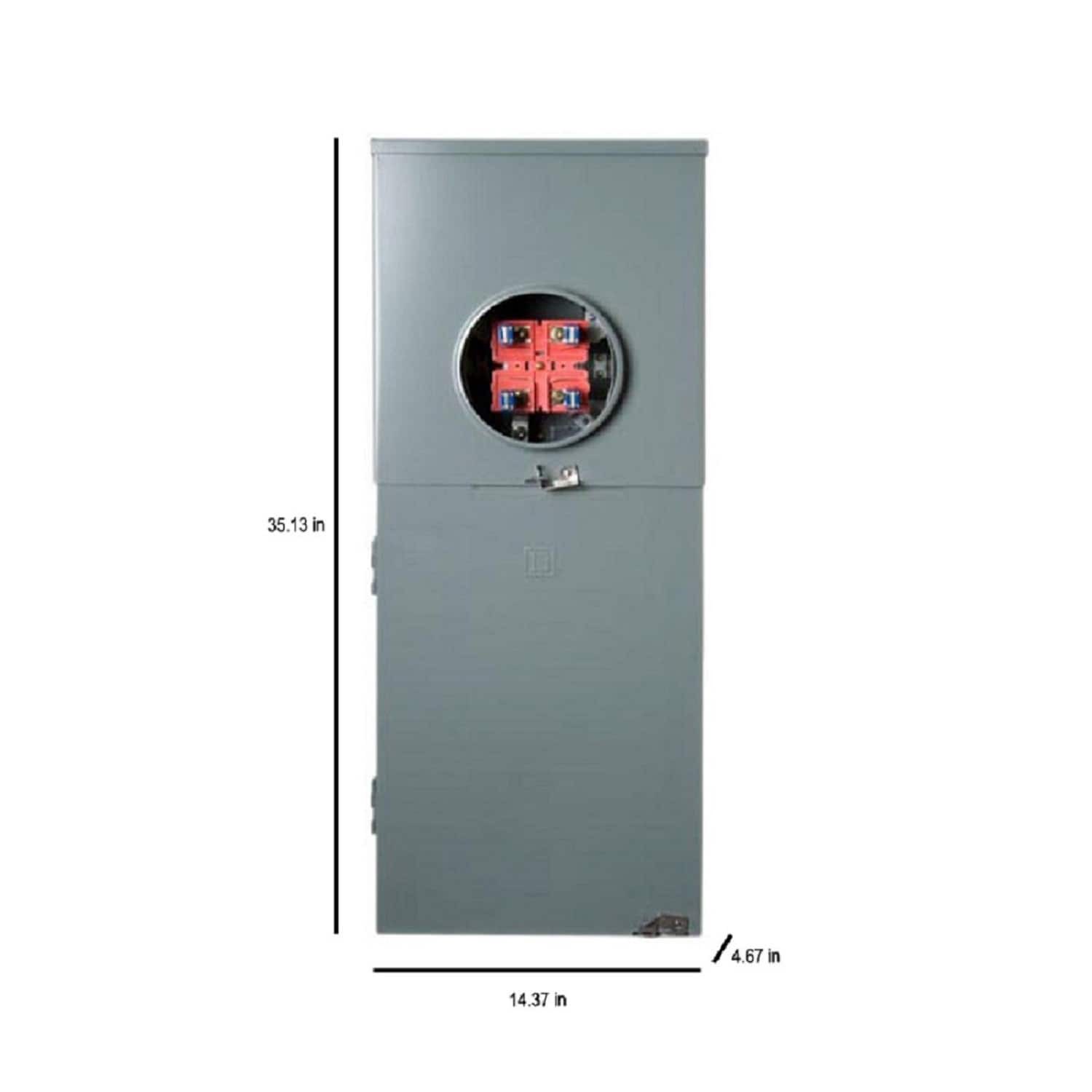

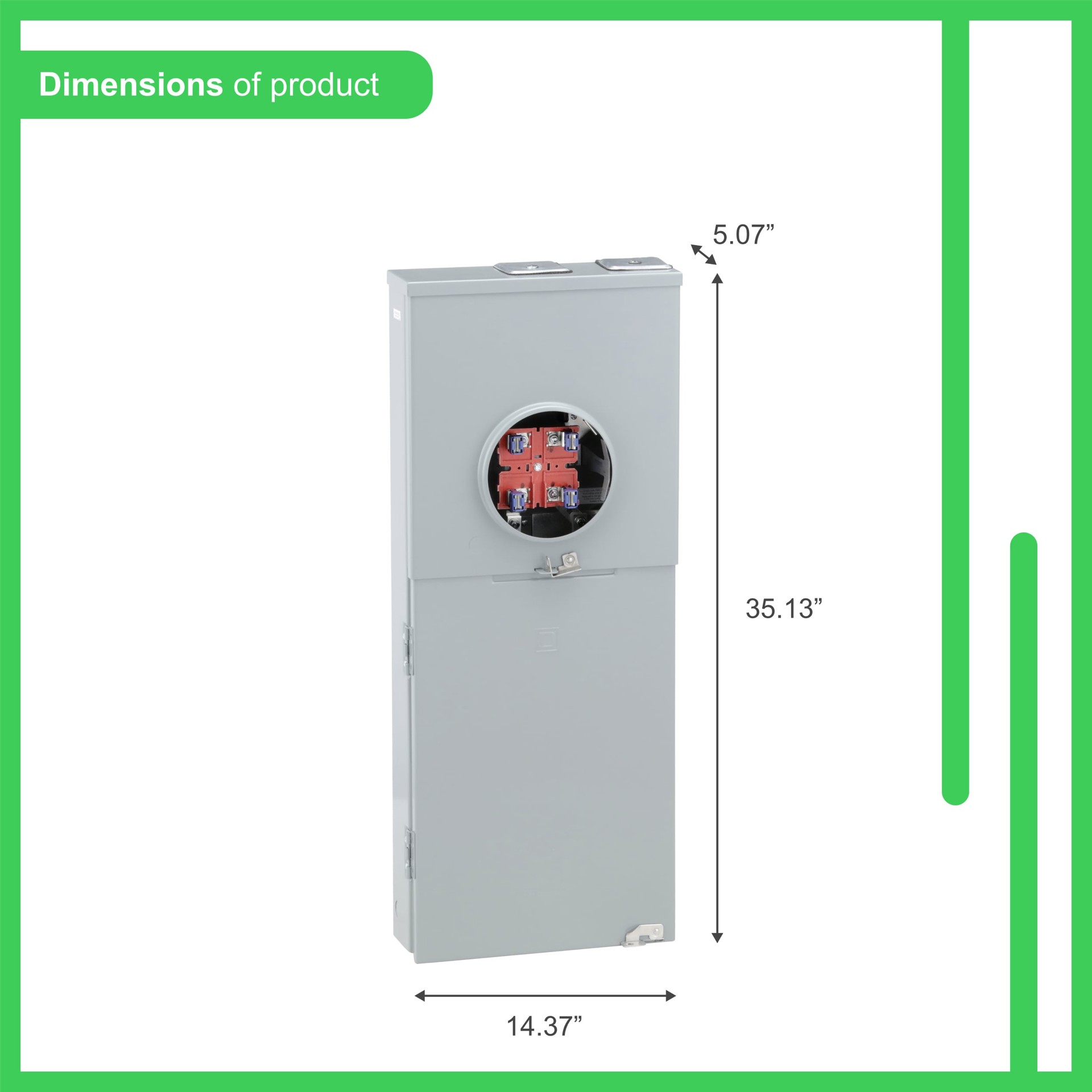

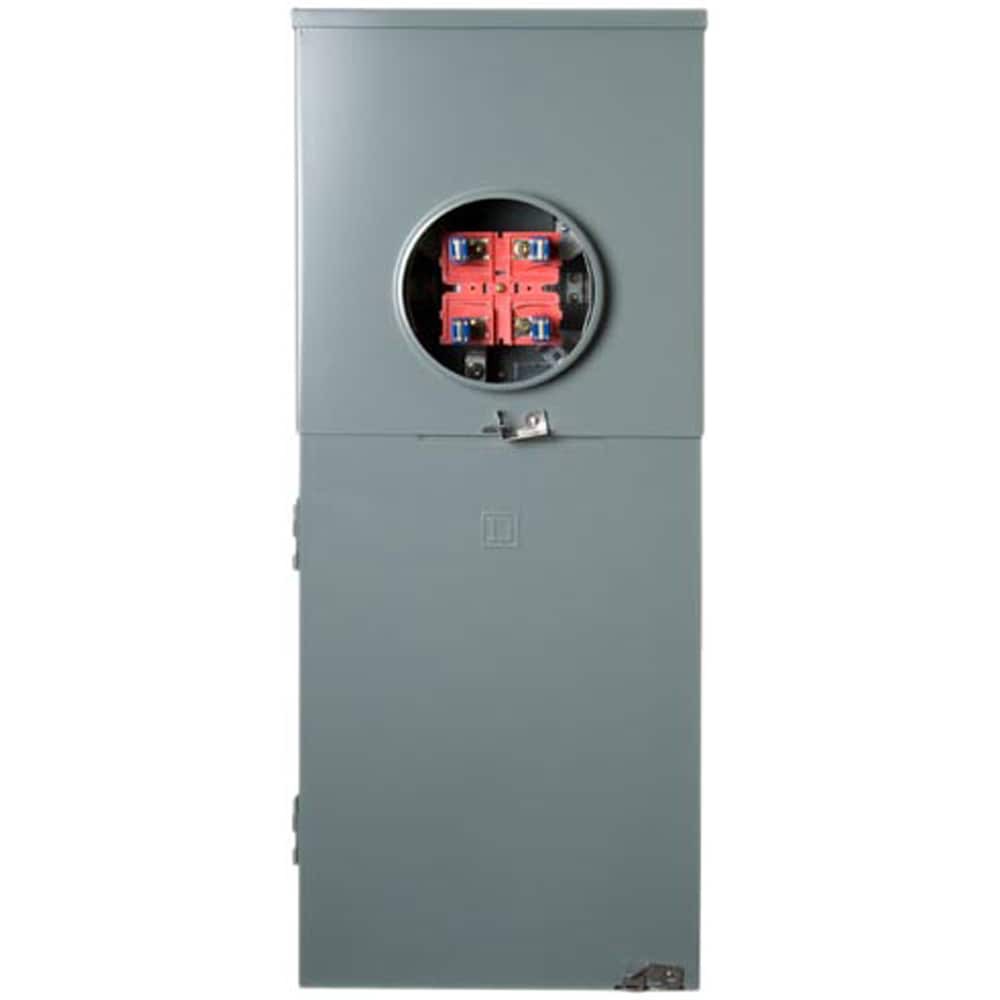

Name: Square D Homeline Ringless Overhead/Underground 200 -Amp 8 -Spaces 16 -Circuit Outdoor Main Breaker Meter Combo Load Center
Brand: Square D
Price: 376.29 USD
Availability: InStock

The Square D 200 Amp 8-Space 16-Circuit Combination Meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED) and has feed-through lugs. It is suitable for overhead or underground service applications. Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers rated 120/240Vac. 4 jaw meter socket. NEMA type 3R enclosure. Bypass Type-none. Designed with straight-In mains to save expensive cable and time. Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring.

Square D Homeline Ringless Overhead/Underground 200 -Amp 8 -Spaces 16 -Circuit Outdoor Main Breaker Meter Combo Load Center
